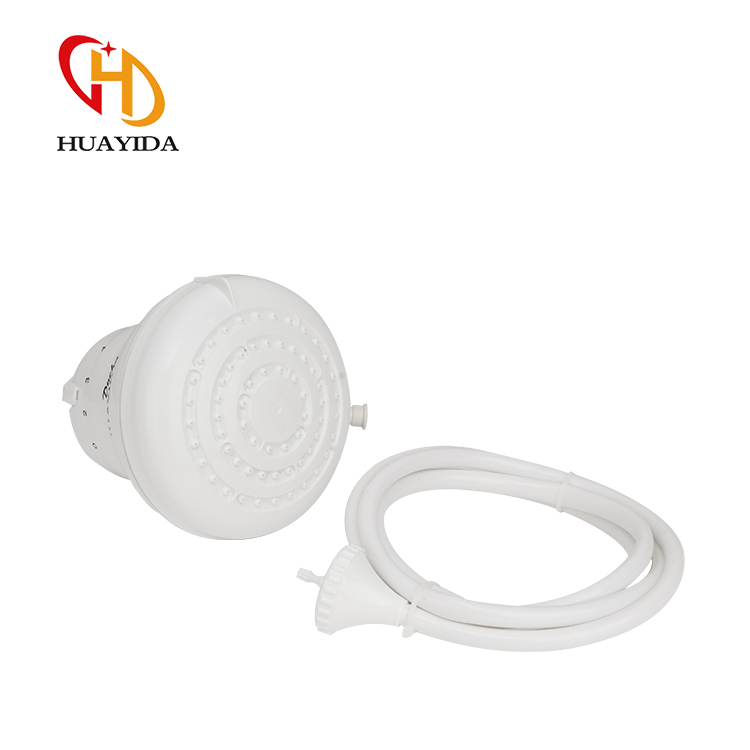

electric instant water heater ducha electric shower head

Product model: HYD-A10

This product has the same functions as HYD-A10, which is suitable for areas with poor water quality, and its appearance design is more high-end by comparison.
This product has four temperature gears, you can choose the appropriate temperature according to your requirements.In addition, our electric water heater in safety, energy saving, heating speed, water output and other aspects of continuous improvement, market sales continue to grow over the years.

Send email to us

Product Detail

Product Tags


Product Features

1.No need other power supply for auto generating electric system
2.5 seconds instantaneous heating
3.Durable heating
4. Function of mixer: mixer cold water and hot water.
5. Manual installation : Easy and simple to be installed

Specification

Circuit breaker	Cable size	Voltage	Power rating
50A	10mm²	110/127V	4000/5400W
40A	6mm²	110/127V	3300/4400W
30A	4mm²	220/230V	5400W
25A	4mm²	220/230V	4400W
35A	6mm²	127V	3850W
Frequency	50/60hz	Out water temperature	30-60℃
IP class	IP24	Grounding wire	YES
Water flow	5L/min	Hose and hand shower	YES

Using

1.The hand shower is attached to the shower head.Place the selector key in the position desired.The water temperature can be controlled through the water value.
2.Depending on the cost of the shower head,you can get a variety of sprays to improve your shower experience.they supply water at a consistent temperature which can be varied depending on user preference.

Frequent questions and answers

Problem	Problem reason	Solution
The water is cold	The selection temperature is in the off position	Put the selection temperature key in the hot or warm position
No water is flowing through the shower head	The main register is closed or there is air inside the pipes	Open the main register and/or the taps and let the water flow to remove the air. The shower head must be disconnected of the electrical system .
The shower head is not heating properly even with select key in the not position	The wires do not have the properly size as specified in the instruction manual.	Contact a qualified technician. To check your electrical installation.
	Low voltage: The voltage of your system may be not constant or under the values specified.	Contact a qualified technician. To verify your electrical system. If the nominal voltage of your system are under the values specified by your electric supplier (110~/127~or220V~), contact the utility responsible for your electrical supply.
Burn of the element	Wear due to the normal use	Heating element change
Burn of the element	Inadequate electric installation	Check the voltage and characteristics from the electric installation, correct them and change the element according indication above.
