CE Certification and Instant Tankless Electric hot water heater


  • Product model: HYD-A14
  • Our products do not need to preheat ahead of time, namely hot type electric water heater does not need the tank of tank of inside store of big bulky body and heat preservation layer on the design so, most bulk is small, weight is light, and easy installation, save space, save material.
    Thus, the main advantage of the electric shower is that you heat only as much water as you use, as opposed to a conventional water heater, where power is wasted heating more water than is required. This makes the electrical water heater very economical.

    Product Detail

    Product Tags

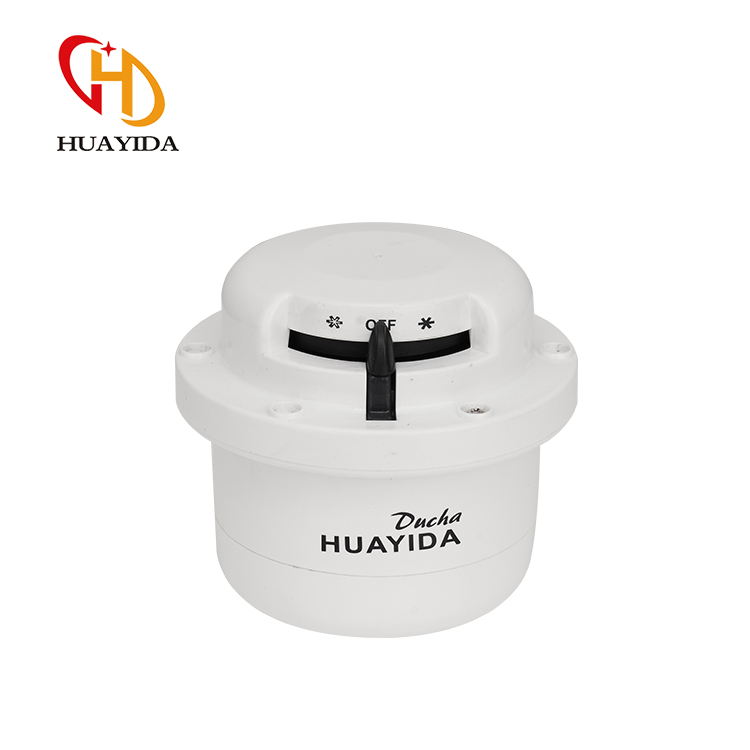

    DSC08221

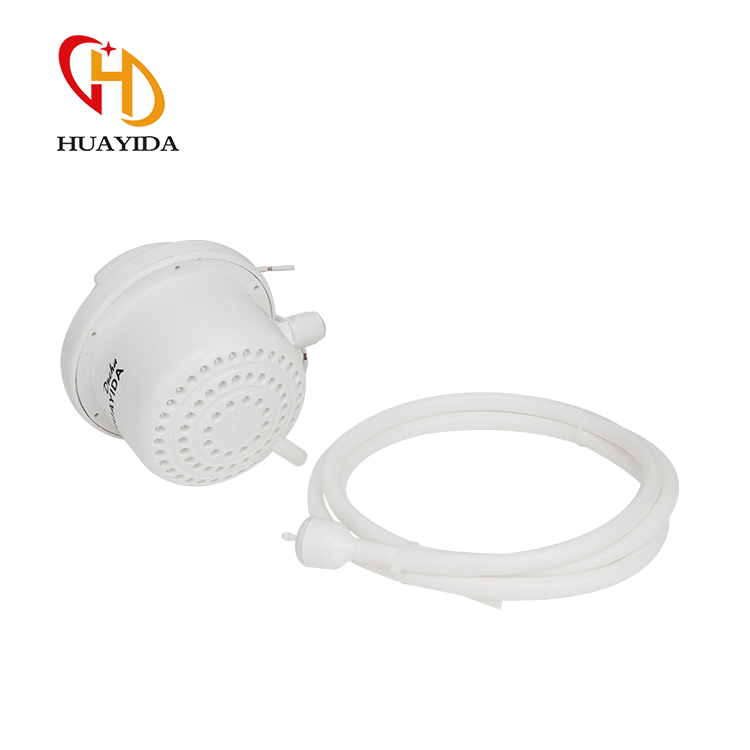

    DSC08223

    Product Features

    1.Electric leakage protection
    2.5 seconds instantaneous heating
    3. Water saving nozzle, easy to install and clean.
    4. Durable heating
    5.Function of mixer: mixer cold water and hot water.
    6. Manual installation : Easy and simple to be installed

    Specification

    Circuit breaker Cable size Voltage Power  rating
    50A 10mm2 110/127V 4000/5400W
    40A 6mm2 110/127V 3300/4400W
    30A 4mm2 220/230V 5400W
    25A 4mm2 220/230V 4400W
    35A 6mm2 127V 3850W
    Frequency 50/60hz Out water temperature 30-60℃
    IP class IP24 Grounding wire YES
    Water flow 5L/min Hose and hand shower YES

    Cleaning And Maintenance

    Dirt and residues in the water can damage the product functioning. If water supplied to this
    equipment presents such characteristics, arrange installation of devices/filter that can avoid dirt and residues passing through the piping and into the product. Be sure that such devices are adequate and do not endanger the minimum functioning pressure of this product.
